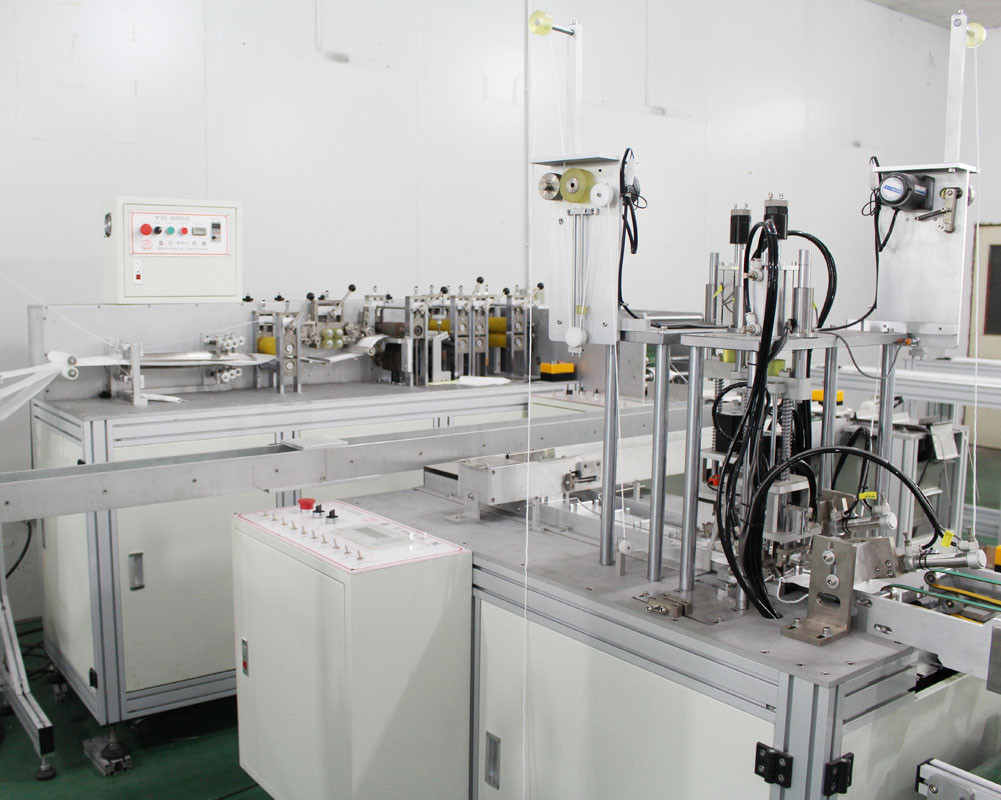

Full automation mask making machine
Mask bodies produced on mother machine can be allocated onto 2 units child machine averagely by PLC at the speed of 100-150 pieces per minute. All of operation of the machine is controlled through touch screen, the interface of man and machine.
On this combination the mask body machine can match with 1, or 2 units of ear-loop, machine.
1.The machine is made of aluminum alloy which makes it beautiful,prevented from rust and has a small size.
2.The machine can make the 1--5 levels mask blank according for the customer's require with a high output;
3. You can adjust the size of the mask blank and the folding location;
4. The direction of the ear loop is outside;
5. Compared with sub mask production equipment, this set of equipment more efficient,
more economical artificial;
6.The computer program control and photoelectric detection make it have a high reliability and low failure rate;
1. blank machine: (L*W*H)2030*700*1530mm
2. ear loop machine: (L*W*H)1650*980*1900mm
3. ear loop machine: (L*W*H)1650*980*1900mm
4. link span: (L*W*H)2150*350*1330mm
5. material rest: (L*W*H)2200*620*1700mm
6. control and power:
7. conveyor: (L*W*H)1220*400*750mm
8. conveyor: (L*W*H)1220*400*750mm
|
Capacity |
100-120pcs/min |
|
Machine weight |
1800kg |
|
Voltage |
220V or customized |
|
Power |
2.7kw |
|
Pressure air |
6kg/cm2 |
|
Body material |
Rustless aluminum alloy |
|
Control mode |
Inverter control |
|
Testing method |
Photoelectric detection |
|
Remark |
The position of the pleats and the size of mask blank is adjustable |
